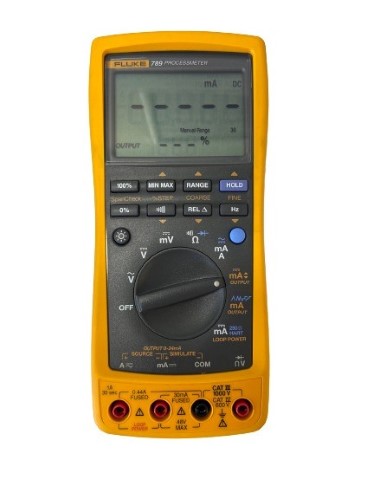

Fluke 789 Processmeter Multimeter

Great Condition

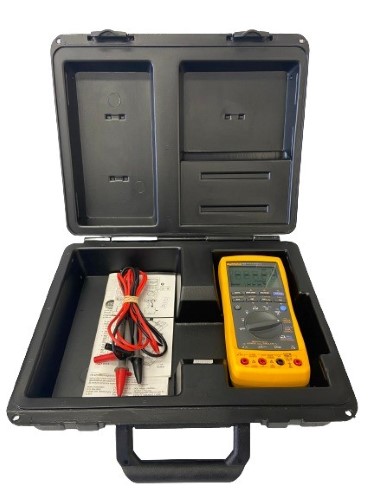

With Case

Specifications
Current measurement Range 0-1 A AC or DC
Resolution 1 mA
Accuracy 0.2% + 2 LSD (DC)
Range 0-30 mA
Resolution 0.001 mA
Accuracy 0.05% + 2 lSD
Current sourcing Range 0-20 mA or 4-20 mA
Resolution 0.05% of span
Drive capability 24 V Compliance or 1200 Ω @ 20 mA
Frequency to 19.999 kHz, 0.005% + 1 LSD
Continuity Beeps for resistance < 100 Ω
Voltage measurement Range 0-1000 V AC (true-rms) or DC
Resolution 0.1 mV to 1.0 V
Accuracy 0.1% Rdg + 1 LSD (VDC)
Resistance measurement to 40 MΩ, 0.2% + 1 LSD

Diode test 2.0 V shoes diode voltage drop
Display current and % of span Yes
Auto Step, Auto Ramp Yes
Environmental Specifications
Operating temperature -20°C to 55°C
Storage temperature -40°C to 60°C
Humidity (without condensation) 95% up to 30°C
75% up to 40°C
45% up to 50°C
35% up to 55°C
Temperature coefficient 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C)
Safety Specifications
Electrical safety Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
Overvoltage category IEC 1010-1 CAT III 1000 V
IEC 1010-1 CAT IV 600 V
Maximum voltage 1000 V RMS

#63398

Cash Converters Mandurah

Come in-store at 6 Dower Street, Mandurah, 6210

Please contact our friendly staff to check availability
on (08)9581 1095 or direct message us.
Layby and Shipping options may be available on most items message for further details.
